PGC201 - passive Pirani/Penning Controller, D03000400
Part Number: D03000400
EUR 4,104.00

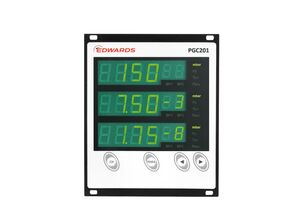

PGC Passive Gauge Controller
Edwards PGC201 controller covers the pressure range between 10-9 and 1000 mbar by combining two measurement principles from the PRG and CPG gauges. The PGC202 combines PRG gauges and IG40 BA or IG40 EX gauges for measurements of vacuum pressures in the range between 10-12 and 1000 mbar. Both these controllers provide monitoring and control functions for the connected gauges.
Features and Benefits
- Compact 3 channel operating unit for a pressure range for passive sensors of -10-9 to 1000 mbar PGC201 -10-12 to 1000 mbar PGC202
- Automatic switchover from Pirani operation to Penning cold cathode operation (PGC201)
- UHV sensors either Bayard-Alpert measurement system IG40 BA or Extractor measurement system IG40 EX (PGC202)
- Measurement cable lengths up to 50 meters
- Easy to operate
General Product Information
| Weight | 1.40 |
| Power Supply Voltage | 1Ph 100-240V ± 10%, 50/60 Hz |
| Dimension Length | 0.174 |
| IP Rating | IP40 |
| Dimension Height | 0.128 |
| Dimension Width | 0.105 |
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Measurement Channels | 3 |
| Available Units of Measurements |
mbar
Torr Pa |
| Accessories / Scope of Supply | Supplied with EU and USA Line Cord |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 253.15 |
| Temperature Ambient Storage Max | 333.15 |
Connectivity - Communication Interface
| Connection electrical comms interface connector | Passive gauges specific cables |
- D1G1091100-A00_A_APG200_-_XM-DN16CF_CUSTOMR_REF.stp - English - Drawings
- D0300040001EN - Instructions.pdf - English - Instructions
- D0300041001EN - Instructions.pdf - English - Instructions
- D0300040001FR - Instructions.pdf - French - Instructions
- D0300041001FR - Instructions.pdf - French - Instructions
- D0300040001DE - Instructions.pdf - German - Instructions
- D0300041001DE - Instructions.pdf - German - Instructions
- D0300040001IT - Instructions.pdf - Italian - Instructions
- D0300041001IT - Instructions.pdf - Italian - Instructions
- D0300040001JP - Instructions.pdf - Japanese - Instructions
- D0300041001JP - Instructions.pdf - Japanese - Instructions
- D0300040001KR - Instructions.pdf - Korean - Instructions
- D0300041001KR - Instructions.pdf - Korean - Instructions
- D0300040001SC - Instructions.pdf - Simplified Chinese - Instructions
- D0300041001SC - Instructions.pdf - Simplified Chinese - Instructions
- D0300040001ES - Instructions.pdf - Spanish (European) - Instructions
- D0300041001ES - Instructions.pdf - Spanish (European) - Instructions
