Specifications
| Connection electrical comms interface connector | RJ45 (FCC 68) - Female |
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Pressure Measurement Max | 1.333 × 10⁵ |
| Pressure Measurement Min | 0.030 |
APGX-H - NW16 Al Convection Pirani - factory calibration, Pirani Gauge, D0239100C
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange |
|---|---|---|
| D02391000 | DN 16 ISO-KF (NW16) | |
| D0239100C | DN 16 ISO-KF (NW16) | |
| D02392000 | DN 25 ISO-KF (NW25) | |
| D0239200C | DN 25 ISO-KF (NW25) | |
| D02395000 | DN 16 ISO-KF (NW16) | |
| D0239500C | DN 16 ISO-KF (NW16) | |
| D02396000 | 1/8" NPT Male | |
| D0239600C | 1/8" NPT Male |
Gauge Indirect Pressure Measurement
Indirect braod range vacuum gauges are the best choice when the pressure needs to be measured over a wide range and when good accuracy is needed across the whole range. Reliable vacuum gauges are essential to ensure your system’s accuracy and control. Our vacuum gauging solutions include the WRG Series Cold Cathode Combination Gauge, AIM Series Cold Cathode Gauge, and APG Series Pirani Gauge.

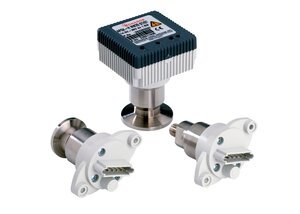

APGX-H Series
The Active Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar. The use of convection technology ensures accuracy and sensitivity are maintained to the top of the pressure range compared to conventional Pirani gauges, which lose accuracy above 100 mbar. The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited.
General Product Information
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Weight | 0.110 |
| Power Supply Voltage | DC 14.5-30V |
| Dimension Length | 0.056 |
| IP Rating | IP40 |
| Power Supply Frequency | DC Voltage |
| Dimension Height | 0.075 |
| Dimension Width | 0.056 |
| Connector Electrical Power | RJ45 (FCC 68) - Female |
| Recommended Controller |
ADC - Gauge Controller
TAG - Turbo & Instrument Controller TIC - Turbo & Instrument Controller - control only |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 243.15 |
| Temperature Ambient Storage Max | 343.15 |
Classification
| Classification Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar Above Atmospheric Pressure: 1000 - 2000 mbar |
| Classification Principle of Measurement | Pirani convection |
Material of Construction
| Material Body | Aluminum |
| Material Exposed to Vacuum | Tungsten; Phospor-bronze; Aluminium; Nickel; Fluoroelastomer; PTFE |
| Material Filament | Tungsten |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.000 × 10⁶ |
| Pressure Inlet Max Overpressure | 1.000 × 10⁶ |
| Temperature Baking Max | 343.15 |
Performance Data
| Measurement Uncertainty | ±15% of full scale |
| Power consumption Max String | 1.5W |
| Pressure Measurement Max | 1.333 × 10⁵ |
| Pressure Measurement Min | 0.030 |
Connectivity - Communication Interface
| Communication Interfaces Customer | 0-10 V (analog output - linear) |
| Connection electrical comms interface connector | RJ45 (FCC 68) - Female |
| Setpoint Quantity | 1 |
| Status Indicator | LED |
Variants
| Variant Gauges | APGX-H |
