Specifications
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Connection vacuum outlet flange | Fitted silencer 1/8" BSPP (or G 1/8") Female |
| Cooling Method | Air Cooling (forced - fan) |
| Pressure Ultimate | 200.00 |
| Power Supply Voltage | 1Ph 100-120/200-230V 50/60Hz |
| Power Total Rated | 80.00 |
XDD1 - Diaphragm Pump, 1Ph 100-120/200-230V 50/60Hz, MK2
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Weight | Power Supply Phase | Power Supply Voltage | Dimension Length | IP Rating | Power Supply Frequency | Dimension Height | Connector Electrical Power | Cooling Method | Power Total Rated | Power Total Rated @60Hz | Power Total Rated @50Hz | Pumping Speed Air Nitrogen 60Hz | Pumping Speed Air Nitrogen 50Hz | Nominal rotational speed | Power at Ultimate | Pumping Speed Air Nitrogen (@50Hz or max @default setting) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A74602983 | 7.30 | 1-Ph | 1Ph 100-120/200-230V 50/60Hz | 0.334 | IP40 | 50 Hz 60 Hz | 0.215 | DSUB 15-PIN - Male | Air Cooling (forced - fan) | 80.00 | 80.00 | 80.00 | 3.889 × 10⁻⁴ | 3.333 × 10⁻⁴ | - | 80.00 | 3.333 × 10⁻⁴ | |
| A74603991 | 4.10 | 3-Ph | DC 24V | 0.223 | IP20 | DC Voltage | 0.164 | IEC EN60320 C14 - Male (for C13 plug on mains cable) | Air Cooling (convection) | 64.00 | 64.00 | 64.00 | 5.000 × 10⁻⁴ | 3.889 × 10⁻⁴ | 28.33 | 64.00 | 3.889 × 10⁻⁴ |
Diaphragm Pumps
Discover the power of our Diaphragm Pumps Collection.
XDD1 Diaphragm Pumps offer compact and efficient pumping designed for clean, high vacuum applications. Ideal for supporting small turbomolecular pumps, the XDD1 is not only versatile but also serves as a free-standing benchtop unit.
D-LAB Membrane Pumps: Support your chemical or pharmaceutical laboratory operations with these top-quality machines. Engineered with chemically resistant Teflon® heads, diaphragms, and Kalrez® valves, these pumps offer a myriad of choices.
Optimize your laboratory experience with the precision and reliability of our Diaphragm Pumps collection. Shop now for high-quality pumps tailored for clean, high vacuum applications and chemical laboratory tasks.

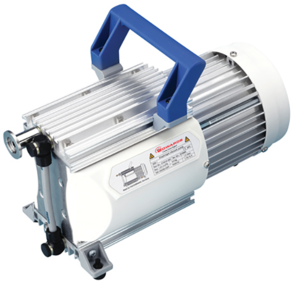

XDD1 Diaphragm Pumps
XDD1 diaphragm pumps are compact and efficient pumps, used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units. A typical ultimate pressure of better than 5 x 10-8 mbar can be achieved when using an XDD1 to back a small turbomolecular pump. The XDD1 pumps are intended for use on non-aggressive, safe area applications.
The 24 V version is designed to provide a complete pumping package and can be used with the Edwards Turbo and Instrument Controller. The DC voltage motor runs on 24V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed or max pumping speed. The pump is a compact and efficient. The Mk3 24V version can now be user set to run at a maximum speed of 1.8 m3h-1 running at 2400 rpm.
Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically > 10,000 operating hours, depending on the application.

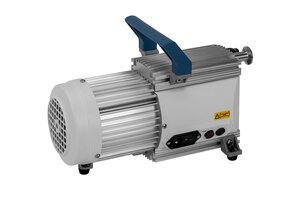

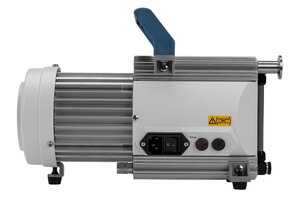

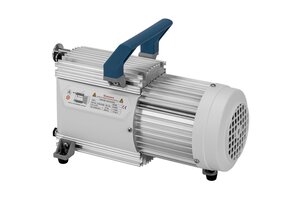

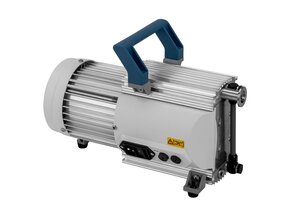

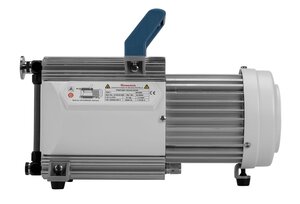

XDD1 - Diaphragm Pump, 1Ph 100-120/200-230V 50/60Hz, MK2
The XDD1 Mk2 is the second generation of the XDD1. It is the mains driven version offering a wide voltage supply range for worldwide operation.
Features and Benefits
- Dry pumping, lubricant free technology - eliminating the need for costly oil changes and disposal
- Lightweight and compact - with a small footprint allowing flexibility of use.
- Ideal backing pump - for small turbomolecular pumps.
- Complies - with EN61010, EN1012, CSA/UL standards.
- Worldwide - 115/230 V or 24 V options.
- IEC 60320 C13 connector - on a.c. pumps.
General Product Information
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Weight | 7.30 |
| Connection vacuum outlet flange |
Fitted silencer
1/8" BSPP (or G 1/8") Female |
| Power Supply Phase | 1-Ph |
| Power Supply Voltage | 1Ph 100-120/200-230V 50/60Hz |
| Dimension Length | 0.334 |
| IP Rating | IP40 |
| Power Supply Frequency |
50 Hz
60 Hz |
| Dimension Height | 0.215 |
| Dimension Width | 0.117 |
| Connector Electrical Power | DSUB 15-PIN - Male |
| Noise / Sound Level | 45.00 db(A) |
| Cooling Method | Air Cooling (forced - fan) |
| Connection Inlet / Outlet Flange | DN 16 ISO-KF (NW16) / Fitted silencer |
| Accessories / Scope of Supply | This product does not include the correct local mains power cable. Has to be additionally selected from the list of suitable accessories. |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Certification Motor |
UL
CSA |
Performance Data
| Power Total Rated | 80.00 |
| Power Total Rated @60Hz | 80.00 |
| Power Total Rated @50Hz | 80.00 |
| Pumping Speed Air Nitrogen 60Hz | 3.889 × 10⁻⁴ |
| Pumping Speed Air Nitrogen 50Hz | 3.333 × 10⁻⁴ |
| Pressure Ultimate | 200.00 |
| Power at Ultimate | 80.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 3.333 × 10⁻⁴ |
Environmental Conditions
| Temperature Ambient Operation Max | 313.15 |
| Temperature Ambient Operation Min | 283.15 |
| Temperature Ambient Storage Min | 263.15 |
| Temperature Ambient Storage Max | 333.15 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.000 × 10⁵ |
| Altitude Max | 2000.00 |
| Pressure Absolute Outlet Continous Max | 1.100 × 10⁵ |
Classification
| Classification Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Diaphragm Pump |
Material of Construction
| Material of Construction | Aluminium,FPM,PTFE,Stainless steel,Aluminium/silicone rubber,PE,Aluminium anodized |
| Material Exposed to Vacuum | Aluminium,FPM,PTFE,Stainless steel,Aluminium/silicone rubber,PE,Aluminium anodized |
- A74603856 - Instructions.pdf - Brazilian Portuguese - Instructions
- A74603851 - Instructions.pdf - Czech - Instructions
- A74603886 - Instructions.pdf - Dutch - Instructions
- A74603885 - Instructions.pdf - English - Instructions
- 3601-0472-01-XDD1-Datasheet.pdf - English - Technical Data
- A74603883 - Instructions.pdf - French - Instructions
- A74603882 - Instructions.pdf - German - Instructions
- A74603884 - Instructions.pdf - Italian - Instructions
- A74603852 - Instructions.pdf - Polish - Instructions
- A74603888 - Instructions.pdf - Spanish (European) - Instructions
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Cable Power Mains - 2m UK BS1363 (type G) - C13 3A (XDD1), A50516000 | A50516000 | EUR 28.20 | |
| Cable Power Mains - 2m open wires - C13 straight plug (mainly nXDS, mXDS, E2M0.7/1.5, RV, T-Station ...), A50508000 | A50508000 | EUR 28.20 | |
| Cable Power Mains - 2m EU CEE 7/7 (Schuko type F) - C13 10A straight plug (mainly nXDS, mXDS, E2M0.7/1.5, RV, T-Station ...), A50506000 | A50506000 | EUR 28.20 | |
| Cable Power Mains - 2m USA/Japan (100-120V) NEMA 5-15P (type B) - C13 10A straight plug (mainly nXDS, mXDS, E2M0.7/1.5, RV, T-Station ...), A50507000 | A50507000 | EUR 28.20 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| XDD1 Diaphragm Pump Service Kit, A74601800 | A74601800 | EUR 512.00 |
