Specifications
| Connection Inlet Flange | DN 80 ASA/ANSI 3" |
| Connection vacuum outlet flange | DN 50 ASA/ANSI 2" |
| Cooling Method | Water Cooling direct |
| Pressure Ultimate | 5.00 |
| Power Total Rated | 7500.00 |

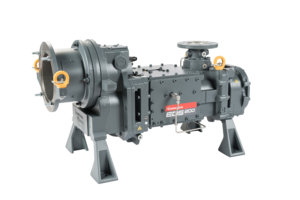

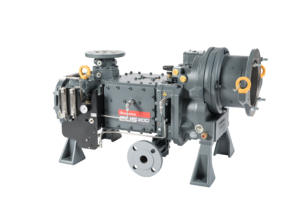

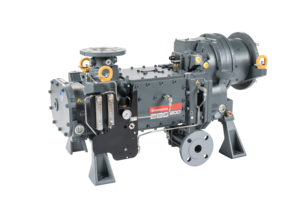

EDS200 HazLoc - Chemical Dry Screw Pump, 50 Hz, ATEX
Part Number: A41822985
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Connection Inlet Flange | Weight | Connection vacuum outlet flange | Leak Rate | Power Supply Phase | Power Supply Voltage | Dimension Length | IP Rating | Power Supply Frequency | Dimension Height | Dimension Width | Noise / Sound Level | Cooling Method | Connection Inlet / Outlet Flange | Dimension Comments | Certification Motor | Hazard Certification | Pressure Differential Max | Power Total Rated | Power Total Rated @60Hz | Power Total Rated @50Hz | Pumping Speed Air Nitrogen 60Hz | Pumping Speed Air Nitrogen 50Hz | Nominal Rotational Speed 50Hz | Capacity Water Vapour | Pressure Ultimate | Nominal Rotational Speed 60Hz | Nominal rotational speed | Power at Atmosphere Continous | Power at Ultimate | Pumping Speed Air Nitrogen (@50Hz or max @default setting) | Pressure Absolute Inlet Continous Max | Altitude Max | Oil Capacity Max | Flow Cooling Water Min | Temperature Cooling Water Max | Temperature Ambient Operation Max | Temperature Ambient Operation Min | Temperature Ambient Storage Min | Temperature Ambient Storage Max | Classification Product Pressure Range | Classification High / Medium / Rough Vacuum pump | Classification Dry or Wet Pump | Classification Vacuum Pump Technology | Default Oil Type | Material of Construction | Material Rotor | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A41822945 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| A41822985 | DN 80 ASA/ANSI 3" | 420.00 | DN 50 ASA/ANSI 2" | 1.000 × 10⁻⁴ | 3-Ph | - | 1.35 | IP54 | 50 Hz | 0.568 | 0.522 | 76.00 db(A) | Water Cooling direct | DN 80 / DN 50 | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. | - | ATEX | 7.000 × 10⁵ | 7500.00 | - | 7500.00 | - | 0.058 | 110.00 | 4.167 × 10⁻⁴ 4.167 × 10⁻⁴ | 5.00 | - | 110.00 | 5180.00 | 4100.00 | 0.058 | 1.050 × 10⁵ | 2000.00 | 1.250 × 10⁻³ | 1.333 × 10⁻⁴ | 308.15 | The specific conditions to operate the machine reliably and safely like cooling water flows, purge flows and so on, and in detail described in the instruction manual please read the correct sections of the manual. | 313.15 | 278.15 | 243.15 | 323.15 | Medium Vacuum: 1 mbar - 1·10⁻³ mbar | Medium Vacuum Pump | Dry | Dry Screw Pump | ULTRAGRADE™ Endurance Extend 110 | Cast SG Iron, PTFE and fluroelastomer, Cast grey iron, steel, aluminium, brass, rubber | Cast Iron GGG40 | |
| A41823945 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| A41824945 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| A41824985 | DN 80 ASA/ANSI 3" | 420.00 | DN 50 ASA/ANSI 2" | 1.000 × 10⁻⁴ | 3-Ph | Bareshaft without motor | 1.35 | IP54 | 50 Hz | 0.568 | 0.522 | 76.00 db(A) | Water Cooling Indirect | DN 80 / DN 50 | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. | - | ATEX | 7.000 × 10⁵ | 7500.00 | - | 7500.00 | - | 0.058 | 110.00 | 4.167 × 10⁻⁴ 4.167 × 10⁻⁴ | 5.00 | - | 110.00 | 5180.00 | 4100.00 | 0.058 | 1.050 × 10⁵ | 2000.00 | 1.250 × 10⁻³ | 1.333 × 10⁻⁴ | 308.15 | The specific conditions to operate the machine reliably and safely like cooling water flows, purge flows and so on, and in detail described in the instruction manual please read the correct sections of the manual. | 313.15 | 278.15 | 243.15 | 323.15 | Medium Vacuum: 1 mbar - 1·10⁻³ mbar | Medium Vacuum Pump | Dry | Dry Screw Pump | ULTRAGRADE™ Endurance Extend 110 | Cast SG Iron, PTFE and fluroelastomer, Cast grey iron, steel, aluminium, brass, rubber | Cast Iron GGG40 | |
| A41824986 | DN 80 ASA/ANSI 3" | 420.00 | DN 50 ASA/ANSI 2" | 1.000 × 10⁻⁴ | 3-Ph | Bareshaft without motor | 1.35 | IP54 | 60 Hz | 0.568 | 0.522 | 76.00 db(A) | Water Cooling Indirect | DN 80 / DN 50 | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. | CE | ATEX | 7.000 × 10⁵ | 7500.00 | 7500.00 | - | 0.058 | - | - | 4.167 × 10⁻⁴ 4.167 × 10⁻⁴ | 5.00 | 110.00 | 110.00 | 5180.00 | 4100.00 | 0.058 | 1.050 × 10⁵ | 2000.00 | 1.250 × 10⁻³ | 1.333 × 10⁻⁴ | 308.15 | The specific conditions to operate the machine reliably and safely like cooling water flows, purge flows and so on, and in detail described in the instruction manual please read the correct sections of the manual. | 313.15 | 278.15 | 243.15 | 323.15 | Medium Vacuum: 1 mbar - 1·10⁻³ mbar | Medium Vacuum Pump | Dry | Dry Screw Pump | ULTRAGRADE™ Endurance Extend 110 | Cast SG Iron, PTFE and fluroelastomer, Cast grey iron, steel, aluminium, brass, rubber | Cast Iron GGG40 |
Dry Screw Pumps
Vacuum dry screw pumps are positive displacement pumps that are designed to operate in rough application conditions. These products do not use any lubricant in the pumping mechanism to seal therefore the are defined as dry compressing machines. They offer high pumping speed and can handle a wide range of gases and vapors. These pumps are ideal for applications in the industrial, chemical, pharmaceutical, and semiconductor industries, among others, where oil-free and contamination-free vacuum is required. They have a compact design and require minimal maintenance, making them a reliable and cost-effective solution for many vacuum applications.
EDS Dry Screw
The EDS dry screw pumps feature an innovative design which creates a new benchmark in the screw pump market with second-to-none contaminant handling capability in the harshest industrial conditions. Available in Air and Water-cooled variants, an intricate piece of engineering, built to the exacting standards and quality demanded by our customers, this dry screw pump provides you with a trouble-free and cost-effective solution to meet your needs.
Features and Benefits
- Innovative and sturdy screw design - The plug and play system and the tapered variable pitch dry screws create a new benchmark in the screw pump market. This is an intricate piece of engineering with a high tolerance for particulates.
- Flexible and safe - The EDS range is safe for use in hazardous environments and is certified to global explosion standards. The pumps high tolerance for particulates make them particularly safe and flexible for the chemical processing industry.
- Multiple variants available - Available in water-cooled and air-blasted variants, the EDS range have second-to-none contaminant handling capabilities in the harshest industrial conditions and dirtiest industrial installations.
General Product Information
| Connection Inlet Flange |
DN 80
ASA/ANSI 3" |
| Weight | 420.00 |
| Connection vacuum outlet flange |
DN 50
ASA/ANSI 2" |
| Leak Rate | 1.000 × 10⁻⁴ |
| Power Supply Phase | 3-Ph |
| Dimension Length | 1.35 |
| IP Rating | IP54 |
| Power Supply Frequency | 50 Hz |
| Dimension Height | 0.568 |
| Dimension Width | 0.522 |
| Noise / Sound Level | 76.00 db(A) |
| Cooling Method | Water Cooling direct |
| Connection Inlet / Outlet Flange | DN 80 / DN 50 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Hazard Certification | ATEX |
Performance Data
| Pressure Differential Max | 7.000 × 10⁵ |
| Power Total Rated | 7500.00 |
| Power Total Rated @50Hz | 7500.00 |
| Pumping Speed Air Nitrogen 50Hz | 0.058 |
| Nominal Rotational Speed 50Hz | 110.00 |
| Capacity Water Vapour |
4.167 × 10⁻⁴
4.167 × 10⁻⁴ |
| Pressure Ultimate | 5.00 |
| Nominal rotational speed | 110.00 |
| Power at Atmosphere Continous | 5180.00 |
| Power at Ultimate | 4100.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.058 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitude Max | 2000.00 |
| Oil Capacity Max | 1.250 × 10⁻³ |
| Flow Cooling Water Min | 1.333 × 10⁻⁴ |
| Temperature Cooling Water Max | 308.15 |
| The specific conditions to operate the machine reliably and safely like cooling water flows, purge flows and so on, and in detail described in the instruction manual please read the correct sections of the manual. |
Environmental Conditions
| Temperature Ambient Operation Max | 313.15 |
| Temperature Ambient Operation Min | 278.15 |
| Temperature Ambient Storage Min | 243.15 |
| Temperature Ambient Storage Max | 323.15 |
Classification
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| Classification High / Medium / Rough Vacuum pump | Medium Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Dry Screw Pump |
Lubricants
| Default Oil Type | ULTRAGRADE™ Endurance Extend 110 |
Material of Construction
| Material of Construction | Cast SG Iron, PTFE and fluroelastomer, Cast grey iron, steel, aluminium, brass, rubber |
| Material Rotor | Cast Iron GGG40 |
